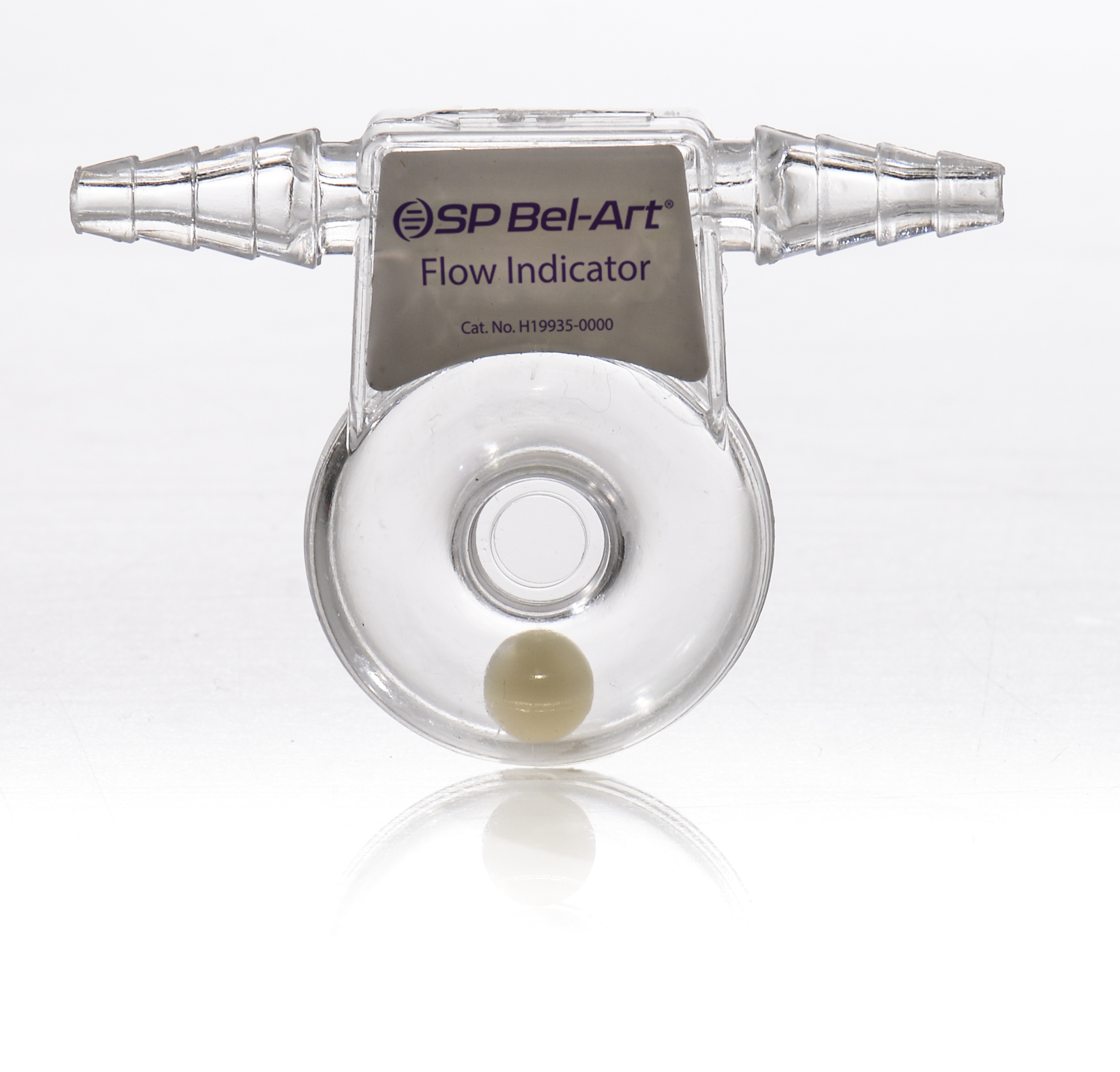

Flow Indicator
Provides Immediate Visual Indication of Water/Liquid Flow
A highly visible nylon indicator ball housed in clear polycarbonate rotates in a circular channel during flow for simple flow monitoring.
- Continuity and relative flow rate indicated by the speed of the ball’s rotation; arrow shows flow direction
- Minimum water flow rate of 100 mL/min (horizontal) or 140 mL/min (vertical) needed to mobilize the ball
- Upper flow limit exceeds 1 L/minute; maximum working pressure is 10 p.s.i.g.
- Dimensions: 30 x 57 mm (1.2 x 2.25″) with two 23 mm (0.9″) tube extensions
- Accepts 6.4 mm (0.25″) to 9.5 mm (0.38″) I.D. tubing; overall size 76 x 57 mm (3 x 2.25″)
Product Variants
| Catalog No. | Pk/Cs | variant_of | Quantity / Pack | Where to Buy |
|---|---|---|---|---|
| H19935-0000 | 12 | Flow Indicator | 1 | Find a Distributor |
