Mini-Sieve Micro Sieve Set

For Handheld Use in Lab or Field

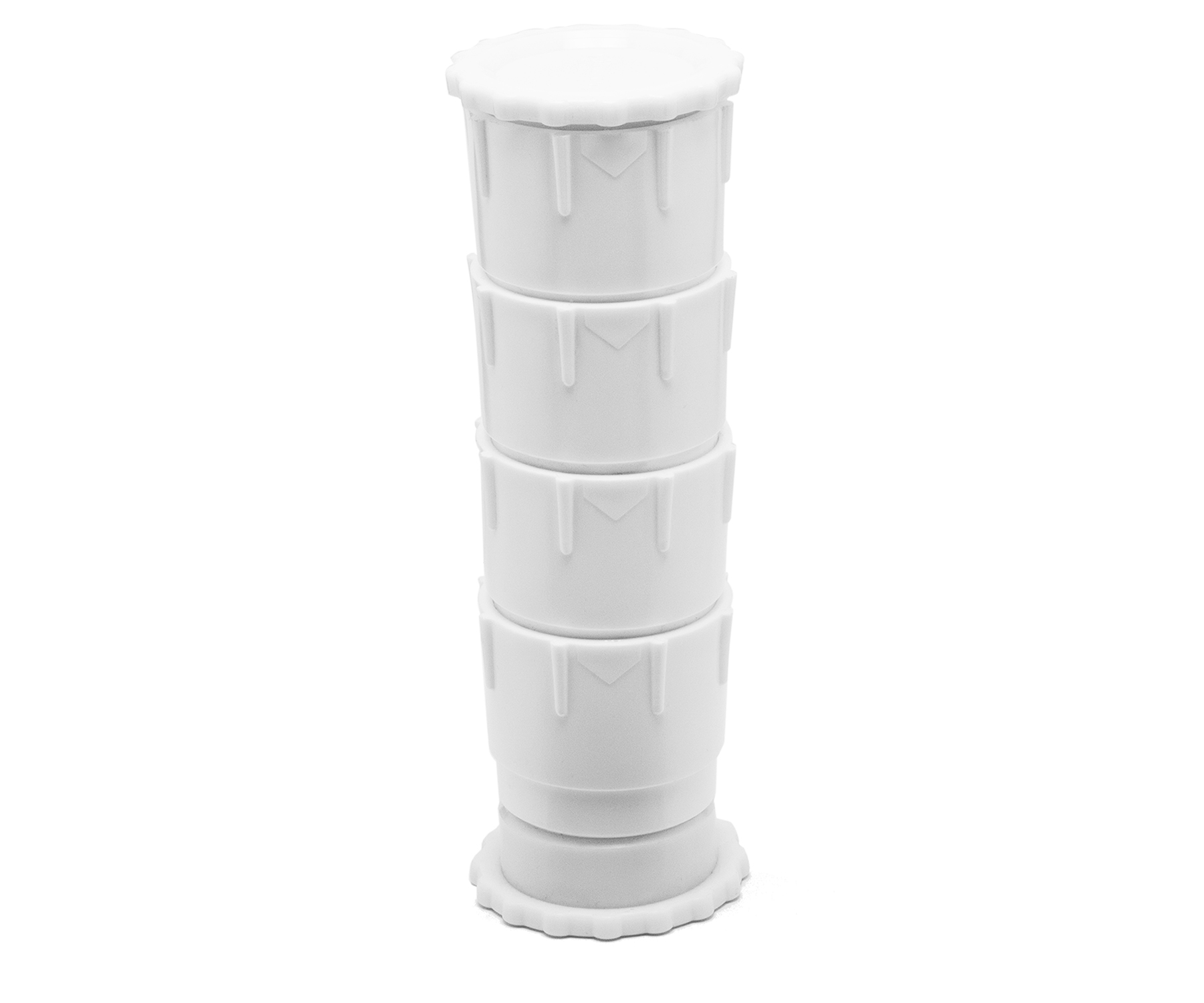

This micro sieve set consists of a stack of four interchangeable, polypropylene screen holding sections, a catch pan, a cover and four screen retaining rings.

• Sections are friction-fit; easy to assemble and take apart for sample retrieval
• Sorting parameters can be changed by exchanging the removable phosphor-bronze mesh inserts; eight included, one each: 25, 35, 45, 60, 80, 120, 170 and 230 standard mesh
• Each holding section is 56 mm (2.25″) I.D. x 41 mm (1.63″) high; holds aprox. 60 cc.
• Dimensions of the assembled set with pan and cover: 21.6 cm (8.5″) high x 7.2 cm (2.13″) maximum diameter
• Additional mesh inserts include pack of 8 Phosphor-Bronze screen inserts, 1 each of 25, 35, 45, 60, 80, 120, 170 and 230 standard mesh

Note: All parts are molded of polypropylene.
